6156-71-1110 — PUMP,(SEE FIG.A4010-C3U9)
Sparepart Komatsu · SAA6D125E-3G-8M · FUEL SUPPLY PUMP AND COMMON RAIL(#310352-) · Halaman 030390
// INFO PART
Halaman / Ref030390
Ref. GambarA4010-A3U9
KelompokENGINE
BagianFUEL SUPPLY PUMP AND COMMON RAIL(#310352-)
Part Number6156-71-1110
Ditulis juga6156711110
Nama PartPUMP,(SEE FIG.A4010-C3U9)
MerkKomatsu
Unit / MesinSAA6D125E-3G-8M
// STRUKTUR ASSEMBLY
Isi assembly 6156-71-1110:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| - | ND094100-0341 | BODY ASS'Y | 1 |
| 44 | ND094086-0210 | O-RING (K2) | 1 |
| - | ND094200-0301 | FEED PUMP ASS'Y | 1 |
| 23 | ND949044-3320 | BOLT | 1 |
| 24 | ND096449-0070 | BOLT,SOCKET | 4 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030390 FUEL SUPPLY PUMP AND COMMON RAIL(#310352-) | 1 | 1 | SN:310352-- | - |
| 030470 FUEL SUPPLY PUMP (1/2) (PUMP) (INNER PARTS)(#310352-) | - | 1 | SN:310352-- | - |
| 030500 FUEL SUPPLY PUMP (2/2) (FEED PUMP) (INNER PARTS)(#310352-) | - | 1 | SN:310352-- | - |

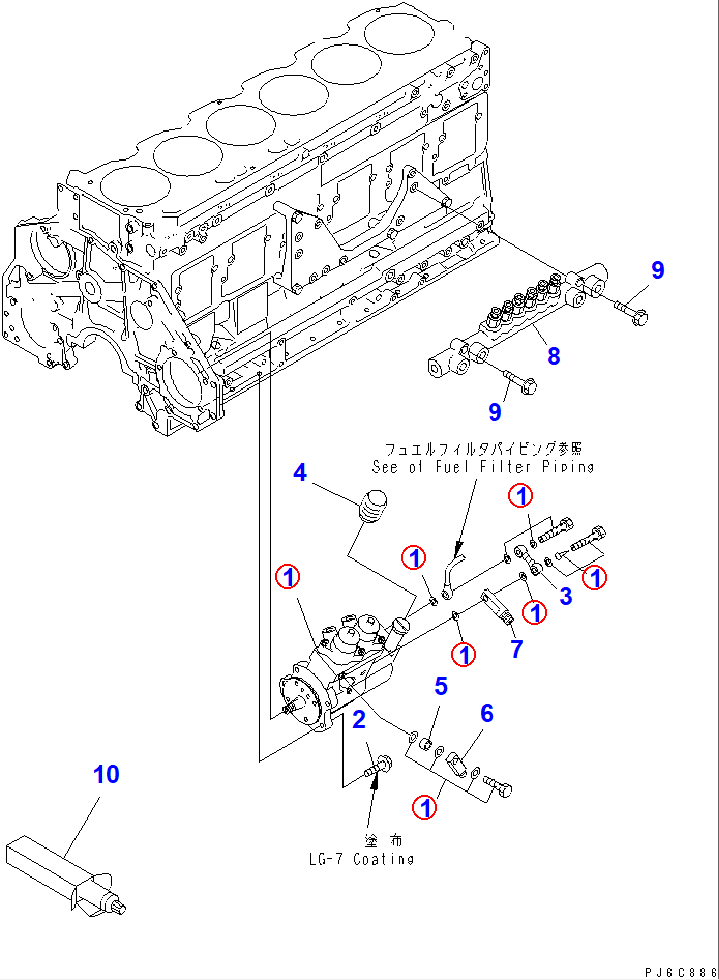

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
6156-71-1110 (part ini)
