ND094100-0341 — BODY ASS'Y
Sparepart Komatsu · SAA6D125E-3G-8M · FUEL SUPPLY PUMP (1/2) (PUMP) (INNER PARTS)(#310352-) · Halaman 030470
// INFO PART
Halaman / Ref030470
Ref. GambarA4010-C3U9
KelompokENGINE
BagianFUEL SUPPLY PUMP (1/2) (PUMP) (INNER PARTS)(#310352-)
Part NumberND094100-0341
Ditulis jugaND0941000341
Nama PartBODY ASS'Y
MerkKomatsu
Unit / MesinSAA6D125E-3G-8M

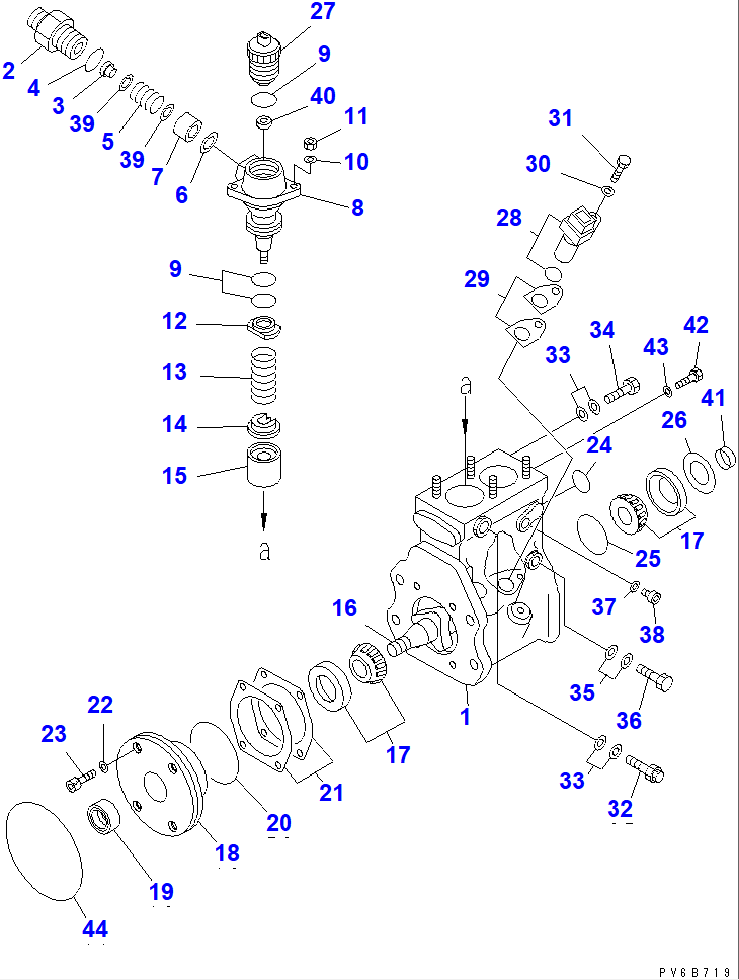

// STRUKTUR ASSEMBLY
Part ini adalah komponen dari assembly:
- 6156-71-1110 PUMP
Isi assembly ND094100-0341:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| 1 | ND094110-0210 | HOUSING ASS'Y | 1 |
| 2 | ND094131-0020 | HOLDER,DELIVERY VALVE | 2 |
| 3 | ND094133-0020 | STOPPER,DELIVERY VALVE | 2 |
| 4 | ND094086-0090 | O-RING | 2 |
| 5 | ND090136-1252 | SPRING,DELIVERY VALVE | 2 |
| 6 | ND094137-0010 | GASKET | 2 |
| 7 | ND094140-0021 | VALVE ASS'Y | 2 |
| 8 | ND094150-0250 | ELEMENT ASS'Y | 2 |
| 9 | ND094086-0100 | O-RING | 6 |
| 10 | ND949013-5880 | WASHER | 4 |
| 11 | ND92156-08081 | NUT | 4 |
| 12 | ND094162-0040 | SEAT,SPRING UPPER | 2 |
| 13 | ND094164-0010 | SPRING,PLUNGER | 2 |
| 14 | ND094165-0021 | SEAT,SPRING LOWER | 2 |
| 15 | ND094170-0080 | TAPPET ASS'Y | 2 |
| 16 | ND094191-0371 | CAMSHAFT | 1 |
| 17 | ND949101-0230 | BEARING,ROLLER | 2 |
| 18 | ND094104-0100 | COVER,BEARING | 1 |
| 19 | ND949150-3030 | SEAL,OIL | 1 |
| 20 | ND094086-0120 | O-RING | 1 |
| 21 | ND094095-0100 | SHIM, 0.05MM | AR |
| - | ND094095-0130 | SHIM, 0.10MM | AR |
| - | ND094095-0140 | SHIM, 0.20MM | AR |
| - | ND094095-0150 | SHIM, 0.30MM | AR |
| - | ND094095-0160 | SHIM, 0.50MM | AR |
| 22 | ND094092-0010 | WASHER | 4 |
| 23 | ND949044-3320 | BOLT | 4 |
| 24 | ND094086-0110 | O-RING | 1 |
| 25 | ND094086-0130 | O-RING | 1 |
| 26 | ND094093-0050 | SHIM, 0.40MM | AR |
| - | ND094093-0060 | SHIM, 0.60MM | AR |
| - | ND094093-0070 | SHIM, 0.80MM | AR |
| - | ND094093-0080 | SHIM, 1.00MM | AR |
| 27 | ND095300-0040 | VALVE ASS'Y,CONTROL | 2 |
| 28 | ND029600-0580 | SENSOR ASS'Y | 1 |
| 29 | ND094096-0050 | SHIM, 0.15MM | AR |
| - | ND094096-0060 | SHIM, 0.20MM | AR |
| - | ND094096-0070 | SHIM, 0.25MM | AR |
| - | ND094096-0080 | SHIM, 0.40MM | AR |
| 30 | ND90200-06081 | WASHER | 1 |
| 31 | ND90107-06161 | BOLT | 1 |
| 32 | ND093050-0500 | VALVE ASS'Y,OVERFLOW | 1 |
| 33 | ND090222-0070 | WASHER | 5 |
| 34 | ND949180-0310 | SCREW | 1 |
| 35 | ND090222-0120 | WASHER | 2 |
| 36 | ND949180-0060 | SCREW | 1 |
| 37 | ND949018-0350 | WASHER | 1 |
| 38 | ND090317-0140 | PLUG,SCREW | 1 |
| 39 | ND90218-06081 | WASHER, 0.30MM | AR |
| - | ND90218-06130 | WASHER, 0.10MM | AR |
| - | ND90218-06140 | WASHER, 0.50MM | AR |
| 40 | ND095331-0020 | STOPPER | 2 |
| 41 | ND090207-0100 | RING | 1 |
| 42 | ND090244-0010 | SCREW | 1 |
| 43 | ND949010-3020 | WASHER | 1 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030470 FUEL SUPPLY PUMP (1/2) (PUMP) (INNER PARTS)(#310352-) | - | 1 | SN:310352-- | subkomponen |
// KODE / INTERCHANGE
ND094100-0341 (part ini)
