ND094200-0301 — FEED PUMP ASS'Y
Sparepart Komatsu · SAA6D125E-3G-8M · FUEL SUPPLY PUMP (2/2) (FEED PUMP) (INNER PARTS)(#310352-) · Halaman 030500
// INFO PART
Halaman / Ref030500
Ref. GambarA4010-D3U9
KelompokENGINE
BagianFUEL SUPPLY PUMP (2/2) (FEED PUMP) (INNER PARTS)(#310352-)
Part NumberND094200-0301
Ditulis jugaND0942000301
Nama PartFEED PUMP ASS'Y
MerkKomatsu
Unit / MesinSAA6D125E-3G-8M
// STRUKTUR ASSEMBLY
Part ini adalah komponen dari assembly:
- 6156-71-1110 PUMP
Isi assembly ND094200-0301:

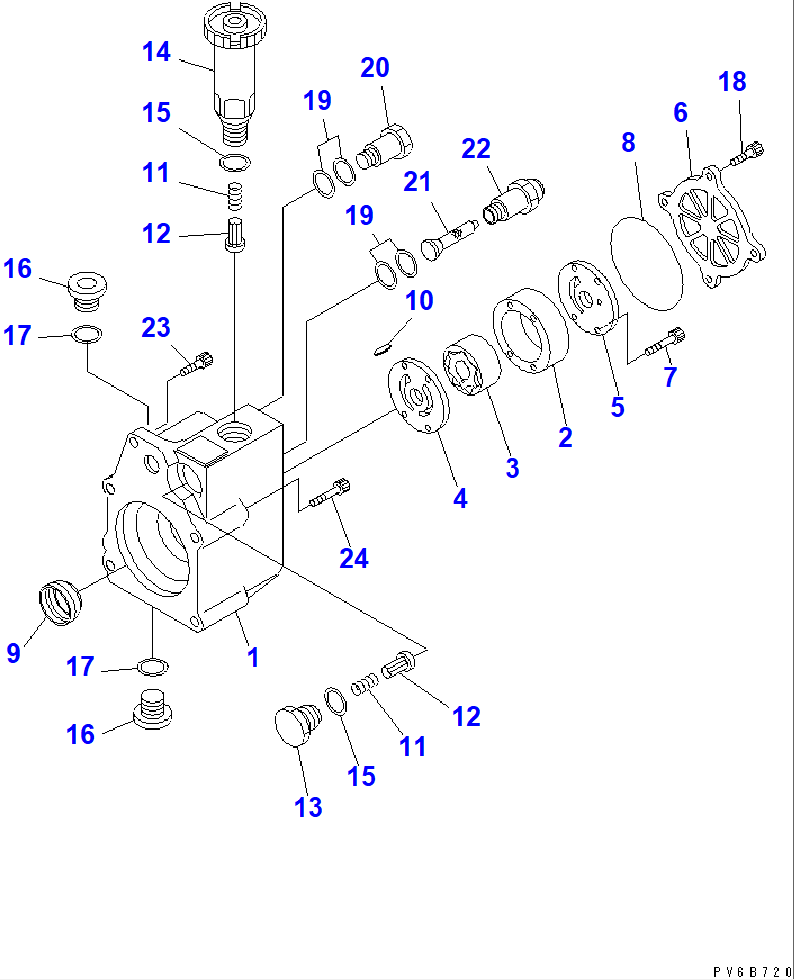

| Item | Part Number | Nama | Qty |
|---|---|---|---|
| 1 | ND094210-0070 | HOUSING ASS'Y | 1 |
| 2 | ND094231-0050 | CASING | 1 |
| 3 | ND094230-0040 | PUMP SUB ASS'Y | 1 |
| 4 | ND094241-0040 | PLATE | 1 |
| 5 | ND094244-0040 | PLATE | 1 |
| 6 | ND094251-0050 | COVER | 1 |
| 7 | ND094082-0040 | SCREW | 4 |
| 8 | ND094086-0200 | O-RING | 1 |
| 9 | ND094087-0050 | SEAL,OIL | 1 |
| 10 | ND094205-0060 | KEY | 1 |
| 11 | ND092124-0010 | SPRING,CHECK VALVE | 2 |
| 12 | ND092121-0011 | VALVE,CHECK | 2 |
| 13 | ND092126-0010 | PLUG,CHAMBER | 1 |
| 14 | ND092130-0360 | PRIMING PUMP | 1 |
| 15 | ND092125-0010 | GASKET | 2 |
| 16 | ND090317-0060 | PLUG,SCREW | 2 |
| 17 | ND949018-1500 | WASHER,1MM | 2 |
| 18 | ND949044-3320 | BOLT | 4 |
| 19 | ND092022-0070 | WASHER | 6 |
| 20 | ND090310-0490 | VALVE,OVERFLOW | 1 |
| 21 | ND092220-0040 | FILTER | 1 |
| 22 | ND092223-0042 | SCREW | 1 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030500 FUEL SUPPLY PUMP (2/2) (FEED PUMP) (INNER PARTS)(#310352-) | - | 1 | SN:310352-- | subkomponen |
// KODE / INTERCHANGE
ND094200-0301 (part ini)
