SD1240-07200X0 — FRONT BRACKET ASS'Y
Sparepart Komatsu · SAA6D125E-3G-8M · ALTERNATOR (75A) (FOR JAPAN) (INNER PARTS)(#310352-) · Halaman 030750
// INFO PART
Halaman / Ref030750

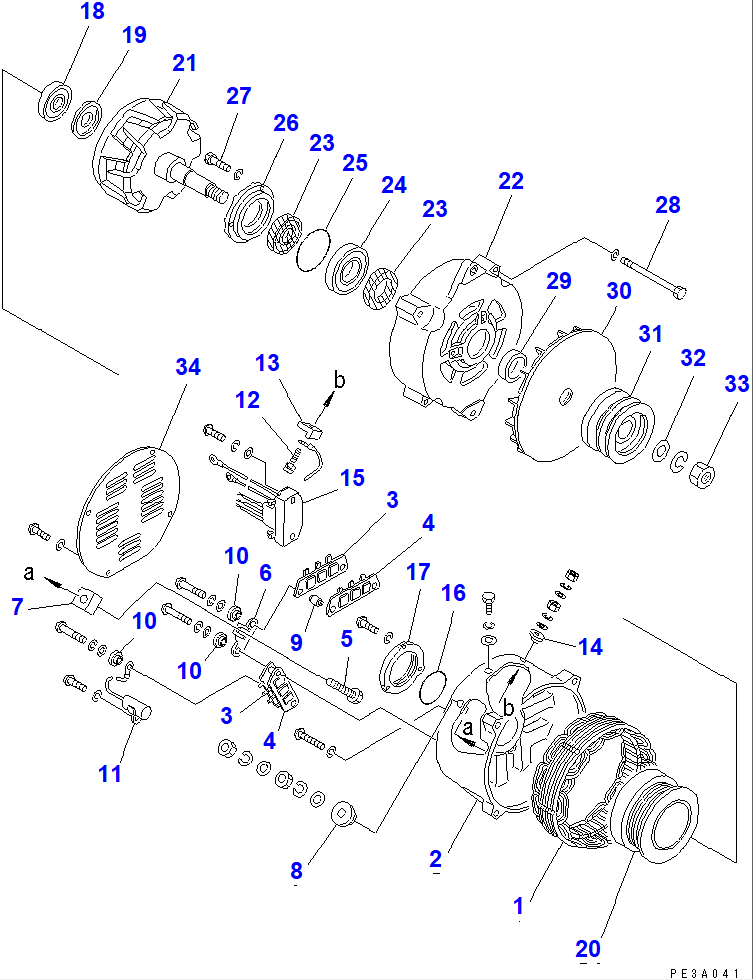

Ref. GambarA6010-B3T1
KelompokENGINE
BagianALTERNATOR (75A) (FOR JAPAN) (INNER PARTS)(#310352-)
Part NumberSD1240-07200X0
Ditulis jugaSD124007200X0
Nama PartFRONT BRACKET ASS'Y
MerkKomatsu
Unit / MesinSAA6D125E-3G-8M
// STRUKTUR ASSEMBLY
Part ini adalah komponen dari assembly:
- 600-821-9970 ALTERNATOR A. (75A)
Isi assembly SD1240-07200X0:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| 22 | SD2242-08600X0 | BRACKET | 1 |
| 23 | SD6410-02000X0 | SEAL,OIL | 2 |
| 24 | SD6206-00320X0 | BEARING,BALL | 1 |
| 25 | SD4142-00900X0 | O-RING | 1 |
| 26 | SD2202-02200X0 | COVER | 1 |
| 27 | SD5010-21500X0 | BOLT | 3 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030750 ALTERNATOR (75A) (FOR JAPAN) (INNER PARTS)(#310352-) | - | 1 | SN:310352-- | subkomponen |
// KODE / INTERCHANGE
SD1240-07200X0 (part ini)
