600-821-9970 — ALTERNATOR A. (75A),(SEE FIG.A6010-B3T1)
Sparepart Komatsu · SAA6D125E-3G-8M · ALTERNATOR AND MOUNTING (75A) (FOR JAPAN)(#310352-) · Halaman 030720
// INFO PART
Halaman / Ref030720
Ref. GambarA6010-A3T1
KelompokENGINE
BagianALTERNATOR AND MOUNTING (75A) (FOR JAPAN)(#310352-)
Part Number600-821-9970
Ditulis juga6008219970
Nama PartALTERNATOR A. (75A),(SEE FIG.A6010-B3T1)
MerkKomatsu
Unit / MesinSAA6D125E-3G-8M
// STRUKTUR ASSEMBLY
Isi assembly 600-821-9970:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| 1 | SD1211-40300X0 | STATOR ASS'Y | 1 |
| - | SD1230-18802X0 | REAR BRACKET ASS'Y | 1 |
| 16 | SD4142-01000X0 | O-RING | 1 |
| 17 | SD2202-01401X0 | COVER | 1 |
| 18 | SD6206-00730X0 | BEARING,BALL | 1 |
| 19 | SD3409-00300X0 | COVER | 1 |
| 20 | SD1251-00700X0 | COIL ASS'Y | 1 |
| 21 | SD1221-15100X0 | ROTOR ASS'Y | 1 |
| - | SD1240-07200X0 | FRONT BRACKET ASS'Y | 1 |
| 28 | SD5010-04750X0 | BOLT | 4 |
| 29 | SD3600-17300X0 | COLLAR | 1 |
| 30 | SD1982-03200X0 | FAN ASS'Y | 1 |
| 31 | SD2080-21600X0 | PULLEY,NON HARDENING | 1 |
| 32 | SD3000-07800X0 | WASHER | 1 |
| 33 | SD8264-1830010 | NUT | 1 |
| 34 | SD3302-04600X0 | COVER | 1 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030720 ALTERNATOR AND MOUNTING (75A) (FOR JAPAN)(#310352-) | - | 1 | SN:310352--312459 | nomor lama |
| 030750 ALTERNATOR (75A) (FOR JAPAN) (INNER PARTS)(#310352-) | - | 1 | SN:310352-- | - |

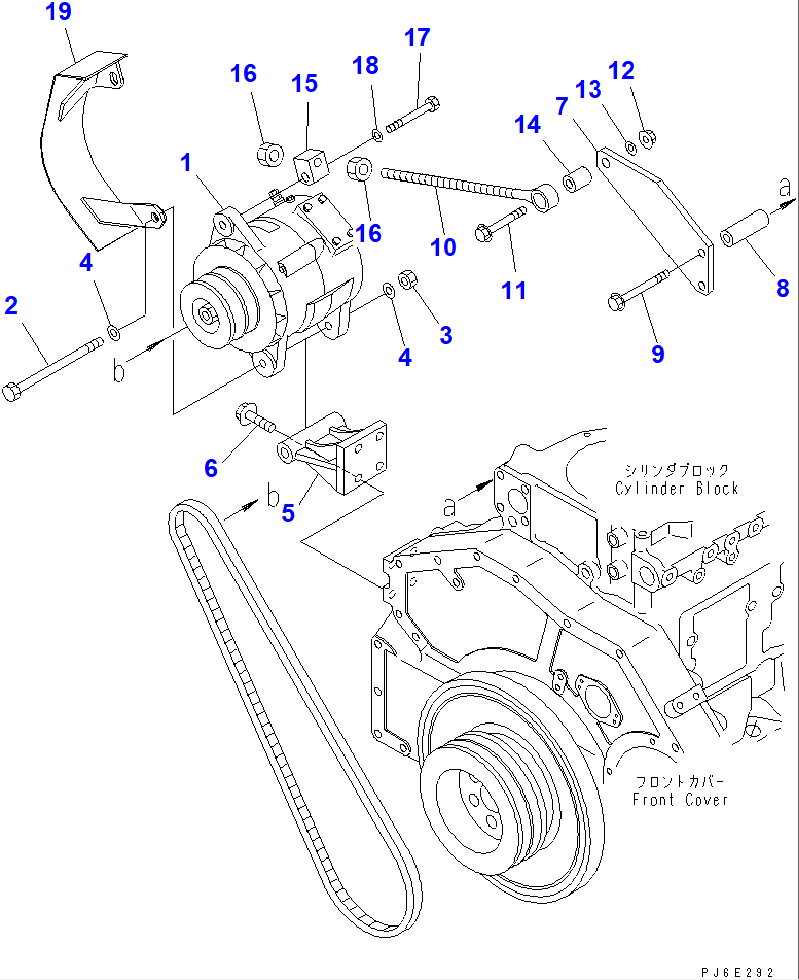

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
600-821-9970 (part ini)
