6218-11-8100 — EXHAUST BRAKE ASS'Y,(SEE FIG.A1650-B3A9)
Sparepart Komatsu · SAA6D125E-3G-8M · EXHAUST BRAKE AND MOUNTING(#310352-) · Halaman 030080
// INFO PART
Halaman / Ref030080
Ref. GambarA1650-A3A9
KelompokENGINE
BagianEXHAUST BRAKE AND MOUNTING(#310352-)
Part Number6218-11-8100
Ditulis juga6218118100
Nama PartEXHAUST BRAKE ASS'Y,(SEE FIG.A1650-B3A9)
MerkKomatsu
Unit / MesinSAA6D125E-3G-8M
// STRUKTUR ASSEMBLY
Isi assembly 6218-11-8100:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| - | JKX8197-034 | BRAKE VALVE ASS'Y | 1 |
| - | JKX8166-202 | CONTROL ASS'Y | 1 |
| 37 | JK1105-0166 | BOLT | 2 |
| 38 | JK1113-0281 | NUT | 2 |
| 39 | JK1291-0200 | CLEVIS | 1 |
| 40 | JK1155-0074 | PIN | 2 |
| 41 | JK286-20111 | PIN | 2 |
| 42 | JK286-20649 | INSULATOR | 1 |
| 43 | ☆ tanpa nomor jual | LABEL | 1 |
☆ = komponen yang tidak dijual terpisah; hanya tersedia sebagai bagian dari assembly 6218-11-8100.
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030080 EXHAUST BRAKE AND MOUNTING(#310352-) | 1 | 1 | SN:310352--310634 | nomor lama |
| 030100 EXHAUST BRAKE (INNER PARTS)(#310352-310634) | - | 1 | SN:310352--310634 | - |

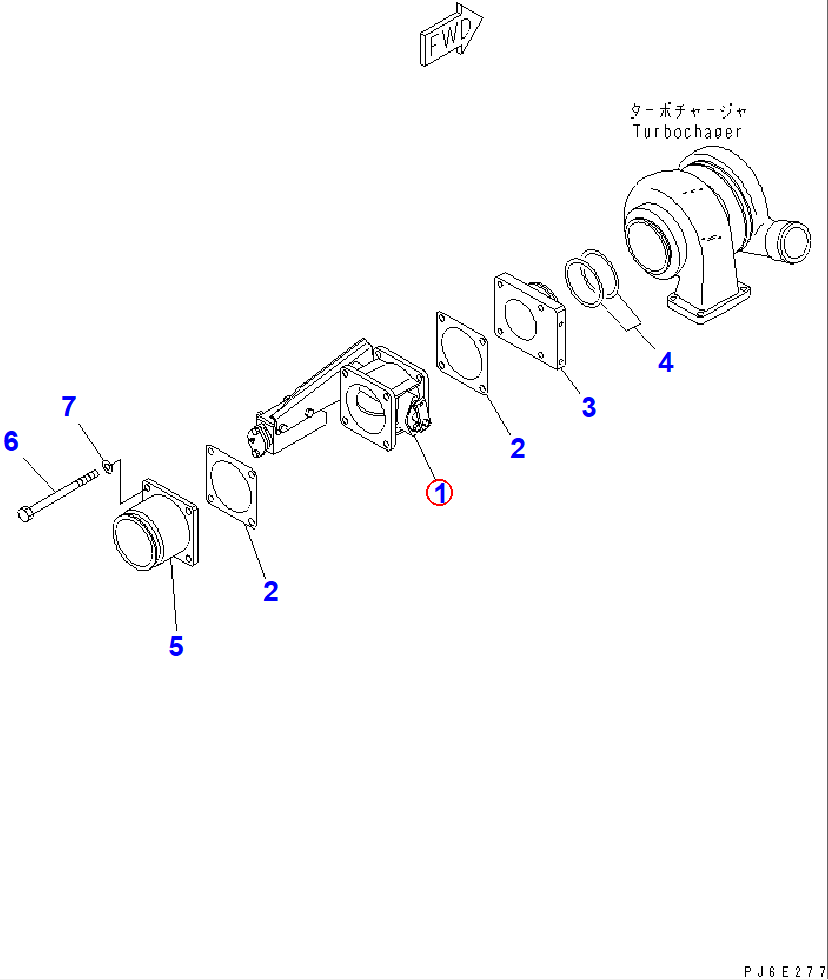

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
6218-11-8100 (part ini)
