SD1230-19400X0 — REAR BRACKET ASS'Y
Sparepart Komatsu · SAA6D125E-3G-8M · ALTERNATOR (50A) (INNER PARTS)(#310352-) · Halaman 030740
// INFO PART
Halaman / Ref030740
Ref. GambarA6010-B3S9
KelompokENGINE
BagianALTERNATOR (50A) (INNER PARTS)(#310352-)
Part NumberSD1230-19400X0
Ditulis jugaSD123019400X0
Nama PartREAR BRACKET ASS'Y
MerkKomatsu
Unit / MesinSAA6D125E-3G-8M
// STRUKTUR ASSEMBLY
Part ini adalah komponen dari assembly:
- 600-821-9680 ALTERNATOR A. (50A)
- 600-821-9690 ALTERNATOR A. (50A)
Isi assembly SD1230-19400X0:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| 2 | SD2240-20610X0 | BRACKET,REAR | 1 |
| 3 | SD1235-07900X0 | HEAT SINK ASS'Y(+) | 1 |
| 4 | SD1235-08000X0 | HEAT SINK ASS'Y(-) | 1 |
| 5 | SD8140-0603510 | BOLT | 1 |
| 6 | SD3220-40000X0 | SUPPORT | 1 |
| 7 | SD4215-00701X0 | INSULATOR | 1 |
| 8 | SD4041-05710X0 | BUSHING | 1 |
| 9 | SD5030-05200X0 | WASHER | 2 |
| 10 | SD8140-0503010 | BOLT | 1 |
| 11 | SD4215-00800X0 | INSULATOR | 1 |
| 12 | SD4041-05700X0 | BUSHING | 1 |
| 13 | SD6060-11920X0 | CONDENSER | 1 |
| 14 | SD1235-07601X0 | RESISTOR ASS'Y | 1 |
| 15 | SD1239-03600X0 | CONNECTOR ASS'Y | 1 |
| 16 | SD4041-03700X0 | BUSHING | 2 |
| 17 | SD1239-04310X0 | CHARGE LAMP ASS'Y | 1 |
| 2 | SD2240-20610X0 | BRACKET | 1 |
| 3 | SD1235-07900X0 | HEAT SINK ASS'Y(+) | 1 |
| 4 | SD1235-08000X0 | HEAT SINK ASS'Y(-) | 1 |
| 5 | SD8140-0603510 | BOLT | 1 |
| 6 | SD3220-40000X0 | SUPPORT | 1 |
| 7 | SD4215-00701X0 | INSULATOR | 1 |
| 8 | SD4041-05710X0 | BUSHING | 1 |
| 9 | SD5030-05200X0 | WASHER | 2 |
| 10 | SD8140-0503010 | BOLT | 1 |
| 11 | SD4215-00800X0 | INSULATOR | 1 |
| 12 | SD4041-05700X0 | BUSHING | 1 |
| 13 | SD6060-11920X0 | CONDENSER | 1 |
| 14 | SD1235-07601X0 | RESISTOR ASS'Y | 1 |
| 15 | SD1239-03600X0 | CONNECTOR ASS'Y | 1 |
| 16 | SD4041-03700X0 | BUSHING | 2 |
| 17 | SD1239-04310X0 | CHARGE LAMP ASS'Y | 1 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030740 ALTERNATOR (50A) (INNER PARTS)(#310352-) | - | 1 | SN:310352-- | subkomponen |
| 030760 ALTERNATOR (50A) (HARDENING PULLEY) (INNER PARTS)(#310352-) | - | 1 | SN:310352-- | subkomponen |

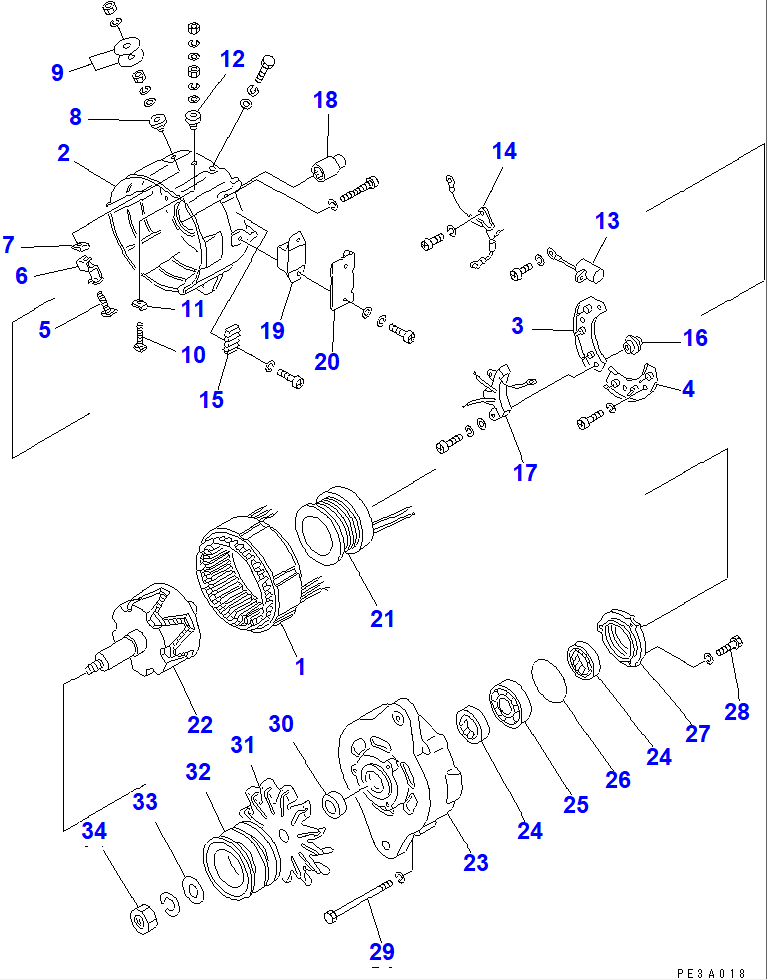

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
SD1230-19400X0 (part ini)
