DK101062-9270 — PUMP ASS'Y

Sparepart Komatsu · SAA6D102E-2C-8 · FUEL INJECTION PUMP (PUMP)(1/2) (INNER PARTS) · Halaman 030580

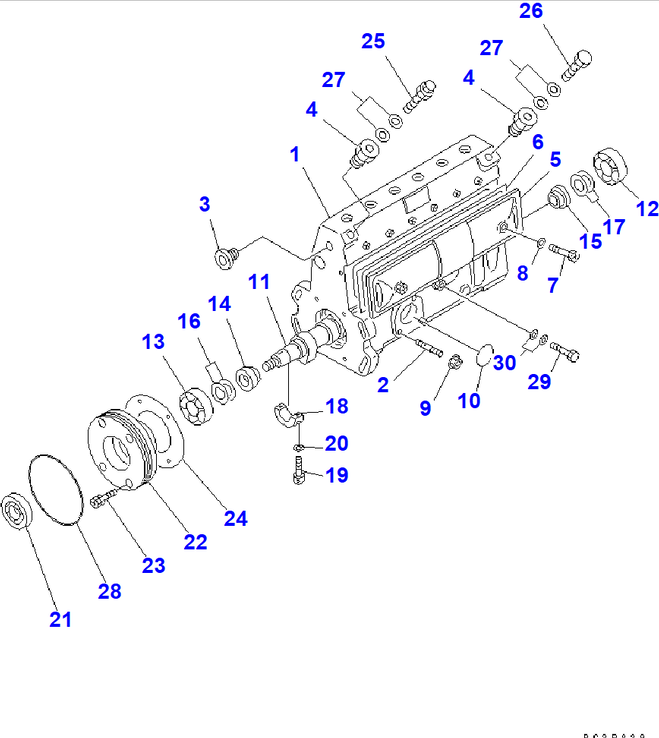

Diagram DK101062-9270 PUMP ASS'Y - Komatsu

// INFO PART

Halaman / Ref030580
Ref. GambarA401P-02G2
BagianFUEL INJECTION PUMP (PUMP)(1/2) (INNER PARTS)
Part NumberDK101062-9270
Nama PartPUMP ASS'Y
MerkKomatsu
Unit / MesinSAA6D102E-2C-8

// TENTANG PART INI

PUMP ASS'Y Komatsu DK101062-9270 ini adalah komponen inti dari pompa injeksi bahan bakar mesin SAA6D102E-2C-8, vital untuk pasokan bahan bakar optimal. Temukan spare part Komatsu terkait lainnya di Jakarta Parts. Selengkapnya di jakartaparts.com.

// STRUKTUR ASSEMBLY

Part ini adalah komponen dari assembly:

Isi assembly DK101062-9270:

ItemPart NumberNamaQty
1DK131073-9120HOUSING1
5DK131028-6020COVER1
7DK131017-1000SCREW2
8DK029340-6020GASKET2
9DK139206-0400NUT3
10DK029633-1010O-RING1
11DK131371-4600CAMSHAFT1
12DK016630-2030BEARINGAR
-DK028201-7020BEARINGAR
13DK016640-2030BEARINGAR
-DK028202-0020BEARINGAR
14DK131302-1300RING1
15DK131302-1700RING1
16DK029312-0310SHIM 0.10MMAR
-DK029312-0320SHIM 0.12MMAR
-DK029312-0330SHIM 0.14MMAR
-DK029312-0340SHIM 0.16MMAR
-DK029312-0350SHIM 0.18MMAR
-DK029312-0360SHIM 0.3MMAR
-DK029312-0370SHIM 0.5MMAR
-DK029312-0380SHIM 1.0MMAR
17DK029311-7010SHIM 0.1MMAR
-DK029311-7020SHIM 0.12MMAR
-DK029311-7030SHIM 0.14MMAR
-DK029311-7040SHIM 0.16MMAR
-DK029311-7050SHIM 0.18MMAR
-DK029311-7090SHIM 0.3MMAR
-DK029311-7060SHIM 0.5MMAR
-DK029311-7210SHIM 0.7MMAR
-DK029311-7070SHIM 1.0MMAR
-DK029311-7220SHIM 1.4MMAR
-DK139417-0000SHIM 2.40MMAR
18DK131306-1000BEARING,CENTER1
19DK029050-5010SCREW2
20DK026505-0940GASKET2
21DK029622-0190SEAL,OIL1
22DK131330-6400COVER1
23DK029010-6810BOLT4
24DK131321-1900GASKET1
25DK131424-3420VALVE1
26DK131401-0120BOLT,EYE1
27DK029341-4130GASKET4
28DK029637-5030O-RING1
29DK029731-0120BOLT,EYE1
30DK029341-0110GASKET2
1DK131034-1401PLUG6
2DK131154-5620PLUNGER ASS'Y6
3DK131110-8020VALVE,DELIVERY6
4DK131112-5600SPRING6
5DK131115-1600GASKET6
6DK131116-8420HOLDER6
7DK131117-3100STOPPER6
8DK131122-0520PLATE ASS'Y3
9DK029632-0030O-RING6
10DK131200-2820TAPPET ASS'Y6
15DK029311-0580SHIM 0.2MMAR
-DK029311-0590SHIM 0.25MMAR
-DK029311-0020SHIM 0.30MMAR
-DK029311-0600SHIM 0.35MMAR
-DK029311-0030SHIM 0.40MMAR
-DK029311-0610SHIM 0.45MMAR
-DK029311-0040SHIM 0.50MMAR
-DK029311-0270SHIM 0.55MMAR
-DK029311-0050SHIM 0.6MMAR
-DK029311-0280SHIM 0.65MMAR
-DK029311-0060SHIM 0.7MMAR
-DK029311-0290SHIM 0.75MMAR
-DK029311-0070SHIM 0.8MMAR
-DK029311-0310SHIM 0.85MMAR
-DK029311-0080SHIM 0.9MMAR
-DK029311-0320SHIM 0.95MMAR
-DK029311-0090SHIM 1.0MMAR
-DK029311-0330SHIM 1.05MMAR
-DK029311-0110SHIM 1.1MMAR
-DK029311-0340SHIM 1.15MMAR
-DK029311-0120SHIM 1.2MMAR
-DK029311-0350SHIM 1.25MMAR
-DK029311-0130SHIM 1.3MMAR
-DK029311-0620SHIM 1.35MMAR
-DK029311-0140SHIM 1.4MMAR
-DK029311-0630SHIM 1.45MMAR
-DK029311-0490SHIM 1.5MMAR
-DK029311-0710SHIM 1.55MMAR
-DK029311-0500SHIM 1.6MMAR
16DK131215-2500SPRING6
17DK131216-0100SEAT,SPRING6
18DK131217-0200SEAT,SPRING6
19DK131256-0900RACK,CONTROL1
20DK131226-0300SCREW1
22DK131241-0100SLEEVE,CONTROL6
23DK131242-0100SCREW6

// PEMAKAIAN DI KATALOG

HalamanItemQtyS/NKet.
030580
FUEL INJECTION PUMP (PUMP)(1/2) (INNER PARTS)
-1SN:26274903--subkomponen
030590
FUEL INJECTION PUMP (PUMP)(2/2) (INNER PARTS)
-1SN:26274903--subkomponen

// DIAGRAM LENGKAP

// KODE / INTERCHANGE

DK101062-9270 (part ini)
