6156-71-1130 — FUEL PUMP ASS'Y,(SEE FIG.A4010-C3W9)
Sparepart Komatsu · SAA6D125E-3G-8M · FUEL SUPPLY PUMP AND COMMON RAIL (LOW VISCSITY FUEL SPEC.)(#311284-) · Halaman 030400
// INFO PART
Halaman / Ref030400
Ref. GambarA4010-A3W9
KelompokENGINE
BagianFUEL SUPPLY PUMP AND COMMON RAIL (LOW VISCSITY FUEL SPEC.)(#311284-)
Part Number6156-71-1130
Ditulis juga6156711130
Nama PartFUEL PUMP ASS'Y,(SEE FIG.A4010-C3W9)
MerkKomatsu
Unit / MesinSAA6D125E-3G-8M
// STRUKTUR ASSEMBLY
Isi assembly 6156-71-1130:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| - | ND094100-0390 | BODY ASS'Y | 1 |
| 43 | ND094086-0210 | O-RING (K2) | 1 |
| - | ND094100-0390 | BODY ASS'Y | 1 |
| 43 | ND094086-0210 | O-RING (K2) | 1 |
| - | ND094200-0350 | FEED PUMP ASS'Y | 1 |
| 22 | ND949044-3320 | BOLT | 1 |
| 23 | ND096449-0070 | BOLT,SOCKET | 4 |
| - | ND094200-0350 | FEED PUMP ASS'Y | 1 |
| 22 | ND949044-3320 | BOLT | 1 |
| 23 | ND096449-0070 | BOLT,SOCKET | 4 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030400 FUEL SUPPLY PUMP AND COMMON RAIL (LOW VISCSITY FUEL SPEC.)(#311284-) | 1 | 1 | SN:311284-- | - |
| 030420 FUEL INJECTION PUMP MOUNTING (LOW VISCSITY FUEL SPEC.)(#313408-) | 1 | 1 | SN:313408-- | - |
| 030480 FUEL SUPPLY PUMP (1/2) (PUMP) (LOW VISCSITY FUEL SPEC.) (INNER PARTS)(#311284-) | - | 1 | SN:311284-- | - |
| 030490 FUEL SUPPLY PUMP (1/2) (PUMP) (LOW VISCSITY FUEL SPEC.) (INNER PARTS)(#313408-) | - | 1 | SN:313408-- | - |
| 030510 FUEL SUPPLY PUMP (2/2) (FEED PUMP) (LOW VISCSITY FUEL SPEC.) (INNER PARTS)(#311284-) | - | 1 | SN:311284-- | - |
| 030520 FUEL SUPPLY PUMP (2/2) (FEED PUMP) (LOW VISCSITY FUEL SPEC.) (INNER PARTS)(#313408-) | - | 1 | SN:313408-- | - |

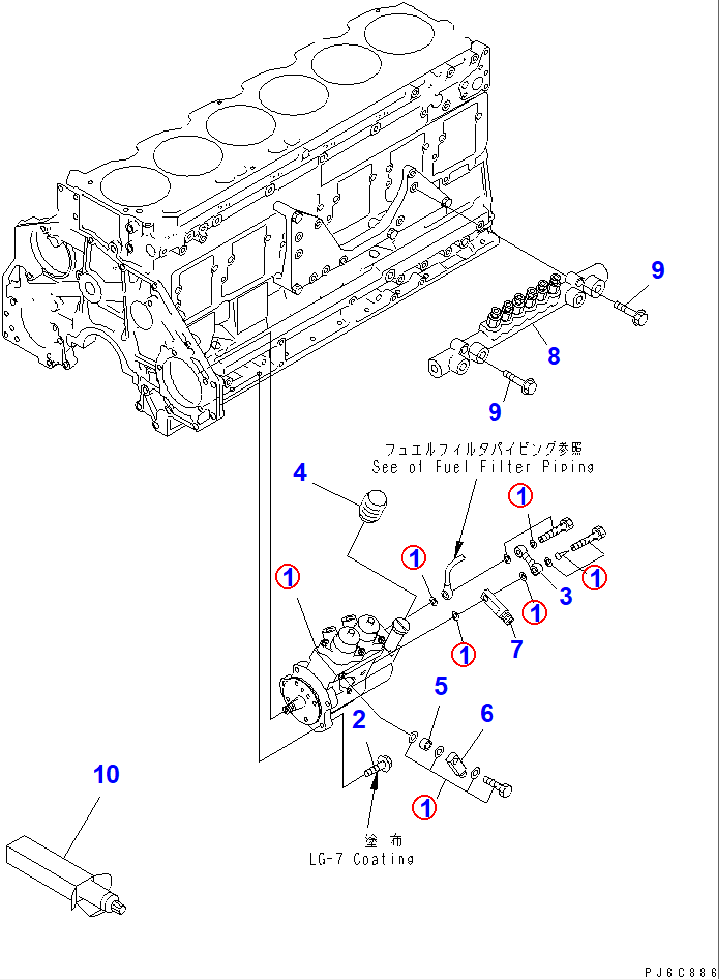

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
6156-71-1130 (part ini)
