600-863-5110 — STARTING MOTOR ASS'Y,(5.5KW)(SEE FIG.A621P-02A1)
Sparepart Komatsu · SAA6D102E-2C-8 · STARTING MOTOR (5.5KW) · Halaman 031070
// INFO PART
Halaman / Ref031070
Ref. GambarA621P-01A1
BagianSTARTING MOTOR (5.5KW)
Part Number600-863-5110
Nama PartSTARTING MOTOR ASS'Y,(5.5KW)(SEE FIG.A621P-02A1)
MerkKomatsu
Unit / MesinSAA6D102E-2C-8
// TENTANG PART INI
Motor starter Komatsu 600-863-5110 (5.5KW) ini berfungsi vital untuk menghidupkan mesin SAA6D102E-2C-8. Temukan motor starter dan suku cadang alat berat Komatsu lainnya di Sumalindo Multistrada. Selengkapnya di sumalindomultistrada.com.
// STRUKTUR ASSEMBLY
Isi assembly 600-863-5110:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| 1 | ND028100-5410 | YOKE ASS'Y | 1 |
| 2 | ND028200-5250 | ARMATURE ASS'Y | 1 |
| - | ND028300-6551 | CLUTCH ASS'Y | 1 |
| 11 | ND128401-5621 | HOUSING | 1 |
| 12 | ND153400-6740 | SWITCH ASS'Y,MAGNETIC | 1 |
| - | ND153400-2600 | SWITCH ASS'Y,MAGNETIC | 1 |
| 20 | ND028065-0250 | BUSHING,DRAIN | 1 |
| 21 | ND028510-0880 | HOLDER ASS'Y,BRUSH | 1 |
| 23 | ND028501-7711 | FRAME | 1 |
| 24 | ND128961-0010 | BALL,STEEL | 1 |
| - | ND949120-0240 | BALL,STEEL | 1 |
| 25 | ND949170-4070 | SPRING | 1 |
| 26 | ND028371-3210 | PINION,STARTER | 1 |
| 27 | ND028306-0070 | ROLLER,CLUTCH | 5 |
| 28 | ND028063-0030 | RETAINER | 1 |
| 29 | ND028062-0130 | CAP | 1 |
| 30 | ND949042-3680 | BOLT | 1 |
| 31 | ND90801-10050 | O-RING | 3 |
| 32 | ND949042-3690 | BOLT | 1 |
| 33 | ND949006-4720 | SCREW | 3 |
| 34 | ND949056-4480 | NUT | 1 |
| 35 | ND028327-0171 | RETAINER,SNAP | 1 |
| 36 | ND90258-10001 | WASHER,SPRING | 1 |
| 37 | ND028901-0361 | SEAL | 2 |
| 38 | ND028371-3200 | PINION | 1 |
| 39 | ND949007-6530 | SCREW | 4 |
| 40 | ND028530-1090 | BRUSH ASS'Y | 2 |
| 41 | ND028530-1100 | BRUSH ASS'Y | 2 |
| 42 | ND949007-6850 | SCREW | 1 |
| 43 | ND028062-5790 | COVER | 1 |
| 44 | ND90170-10061 | NUT | 1 |
| 45 | ND028901-5190 | SEAL | 1 |
| - | ND90801-20470 | O-RING | 1 |
| 46 | ND90200-06241 | WASHER | 3 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 031070 STARTING MOTOR (5.5KW) | - | 1 | SN:26274903--26298938 | nomor lama |
| 031100 STARTING MOTOR (5.5KW) (INNER PARTS)(#26200467-) | - | 1 | SN:26200467--26298938 | - |

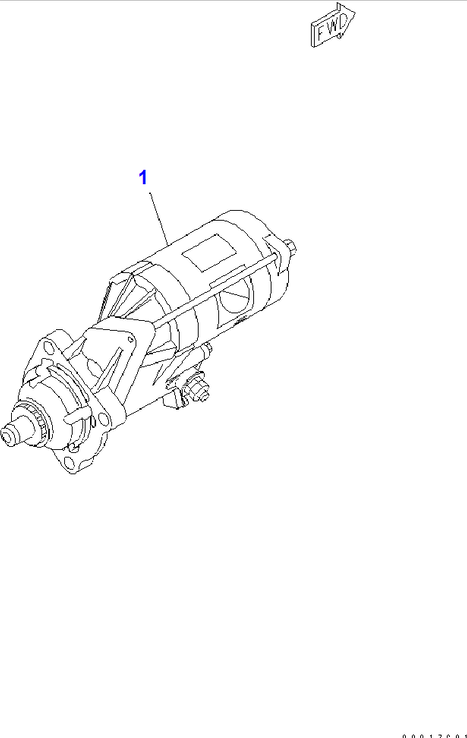

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
600-863-5110 (part ini)
