600-863-4210 — STARTING MOTOR ASS'Y,(4.5KW)(SEE FIG.A621P-02A4)

Sparepart Komatsu · SAA6D102E-2C-8 · STARTING MOTOR (4.5KW) (WITH PROTECT COVER)(#26302312-) · Halaman 031090

// INFO PART

Halaman / Ref031090

Ref. GambarA621P-01A4

BagianSTARTING MOTOR (4.5KW) (WITH PROTECT COVER)(#26302312-)

Part Number600-863-4210

Nama PartSTARTING MOTOR ASS'Y,(4.5KW)(SEE FIG.A621P-02A4)

MerkKomatsu

Unit / MesinSAA6D102E-2C-8

// TENTANG PART INI

Starting motor Komatsu 4.5KW (kode 600-863-4210) ini berfungsi penting untuk menghidupkan mesin SAA6D102E-2C-8. Dapatkan starter motor asli Komatsu serta sparepart alat berat lainnya hanya di Sparepart Alat Berat. Selengkapnya di sparepart-alat-berat.com.

// STRUKTUR ASSEMBLY

Isi assembly 600-863-4210:

Item	Part Number	Nama	Qty
1	ND028100-2882	YOKE ASS'Y	1
4	ND028200-1590	ARMATURE ASS'Y	1
-	ND028300-6551	CLUTCH ASS'Y	1
13	ND228401-0633	HOUSING ASS'Y	1
14	ND153400-8530	MAGNETIC SWITCH A.	1
22	ND028510-5390	BRUSH HOLDER ASS'Y	1
24	ND028501-9091	FRAME	1
25	ND128961-0010	BALL	1
26	ND949170-4070	SPRING	1
27	ND028371-1500	PINION	1
28	ND028306-0070	ROLLER	5
29	ND028063-0030	RETAINER	1
30	ND028327-0171	RETAINER	1
31	ND128950-0520	BOLT	2
32	ND949020-0600	WASHER,FELT	1
33	ND90801-10050	O-RING	3
34	ND949007-6530	SCREW	2
35	ND90170-10061	NUT	1
36	ND949056-4480	NUT	1
37	ND90258-10001	WASHER	1
38	ND949006-4720	SCREW	3
39	ND90200-06241	WASHER	3
40	ND028062-5790	COVER	1
41	ND949007-6850	SCREW	1
42	ND028901-5190	SEAL	1

// PEMAKAIAN DI KATALOG

Halaman	Item	Qty	S/N	Ket.
031090 STARTING MOTOR (4.5KW) (WITH PROTECT COVER)(#26302312-)	1	1	SN:26302312--	-
031120 STARTING MOTOR (4.5KW) (WITH PROTECT COVER) (INNER PARTS)(#26302312-)	-	1	SN:26302312--	-

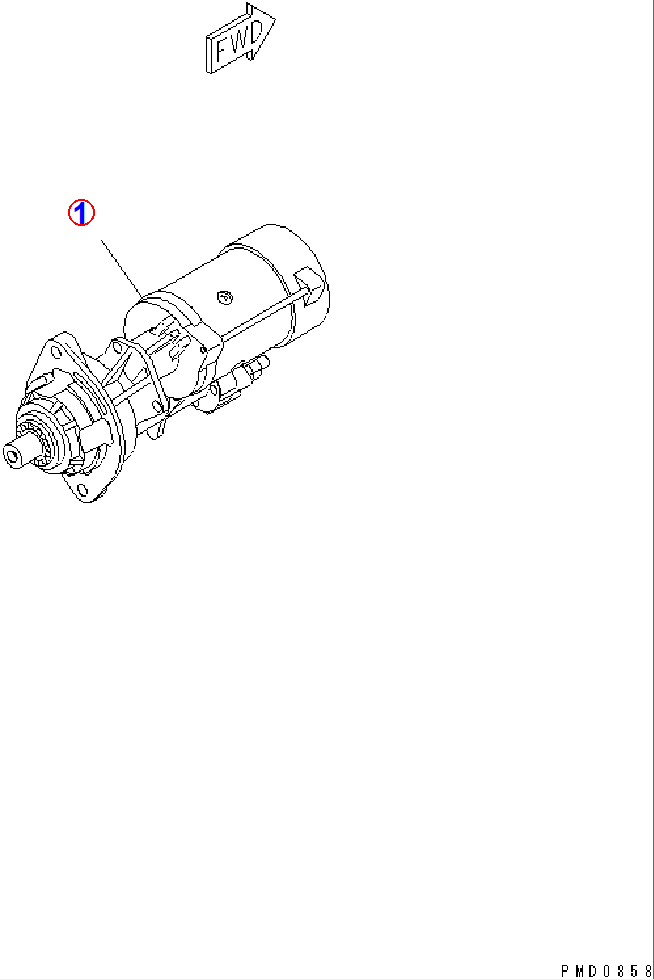

// DIAGRAM LENGKAP

// KODE / INTERCHANGE

600-863-4210 (part ini)
