600-861-6420 — ALTERNATOR A. (60A),(SEE FIG.A601P-02B1)
Sparepart Komatsu · SAA6D102E-2C-8 · ALTERNATOR (60A)(#26302312-) · Halaman 030890
// INFO PART
Halaman / Ref030890
Ref. GambarA601P-01B1
BagianALTERNATOR (60A)(#26302312-)
Part Number600-861-6420
Nama PartALTERNATOR A. (60A),(SEE FIG.A601P-02B1)
MerkKomatsu
Unit / MesinSAA6D102E-2C-8
// TENTANG PART INI
Alternator Komatsu kode 600-861-6420 ini vital untuk menghasilkan daya listrik stabil pada mesin SAA6D102E-2C-8. Untuk kebutuhan suku cadang Komatsu ini atau alat berat lainnya, kunjungi Jual Sparepart. Selengkapnya di jual-sparepart.com.
// STRUKTUR ASSEMBLY
Isi assembly 600-861-6420:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| - | ND121400-0800 | FRAME ASS'Y | 1 |
| 8 | ND021501-8050 | FRAME,REAR | 1 |
| 9 | ND021580-4820 | HOLDER | 1 |
| 10 | ND021620-2720 | BRUSH HOLDER ASS'Y | 1 |
| 11 | ND126000-2320 | BRUSH HOLDER ASS'Y | 1 |
| 12 | ND021551-2480 | COVER | 1 |
| 13 | ND021605-1970 | BUSHING | 4 |
| 14 | ND021605-2481 | BUSHING | 1 |
| 15 | ND949006-5460 | SCREW | 3 |
| 16 | ND91310-04251 | SCREW | 2 |
| - | ND949007-5110 | SCREW | 2 |
| 17 | ND949056-2481 | NUT | 7 |
| 18 | ND949056-3080 | NUT | 1 |
| 19 | ND021200-8380 | ROTOR ASS'Y | 1 |
| 22 | ND021041-8620 | PULLEY | 1 |
| 23 | ND949056-2520 | NUT | 1 |
| 24 | ND021626-0190 | SEAL | 1 |
| 25 | ND021626-0250 | SEAL | 1 |
| 26 | ND021542-0160 | WASHER | 1 |
| 27 | ND949006-6401 | SCREW | 1 |
| 28 | ND949007-6280 | SCREW | 4 |
| 29 | ND021602-5230 | PLATE | 1 |
| 30 | ND92150-06061 | NUT | 1 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030890 ALTERNATOR (60A)(#26302312-) | 1 | 1 | SN:26302312-- | - |
| 030970 ALTERNATOR (60A) (INNER PARTS)(#26302312-) | - | 1 | SN:26302312-- | - |

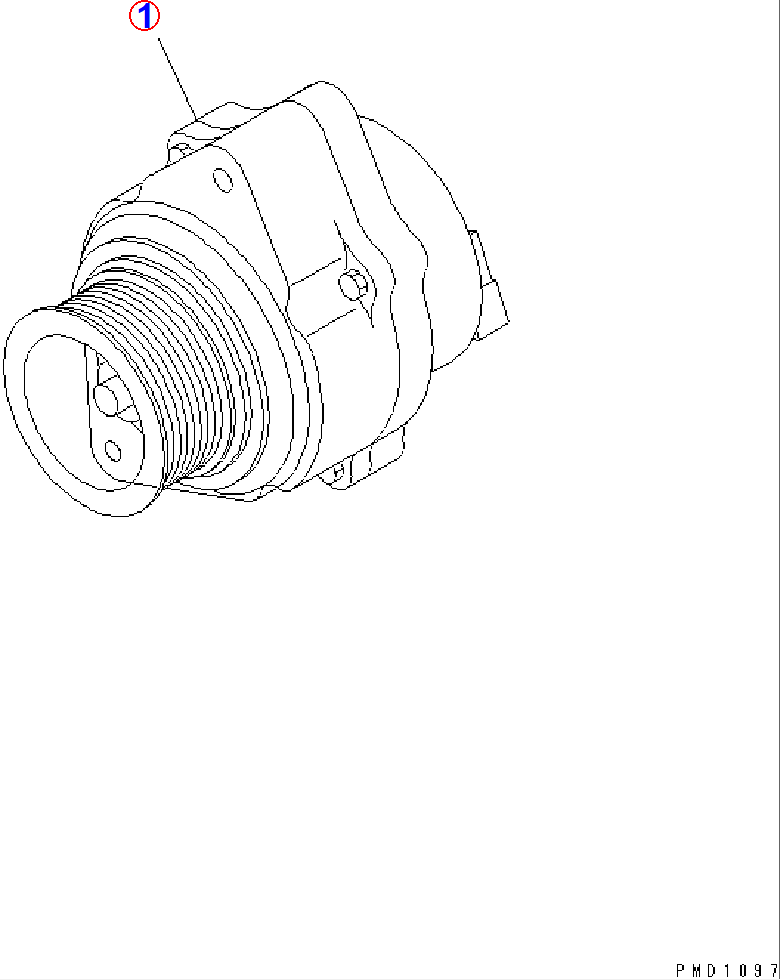

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
600-861-6420 (part ini)
