600-861-3410 — ALTERNATOR A. (35A),(SEE FIG.A601P-02A9)
Sparepart Komatsu · SAA6D102E-2C-8 · ALTERNATOR (35A)(#26274903-26328689) · Halaman 030860
// INFO PART
Halaman / Ref030860
Ref. GambarA601P-01A9
BagianALTERNATOR (35A)(#26274903-26328689)
Part Number600-861-3410
Nama PartALTERNATOR A. (35A),(SEE FIG.A601P-02A9)
MerkKomatsu
Unit / MesinSAA6D102E-2C-8
// TENTANG PART INI
Alternator Komatsu 600-861-3410 ini berfungsi vital pada mesin SAA6D102E-2C-8 untuk menghasilkan daya listrik. Temukan suku cadang terkait atau berbagai spare part genset Perkins & Cummins di Sparepart Genset. Selengkapnya di sparepartgenset.net.
// STRUKTUR ASSEMBLY
Isi assembly 600-861-3410:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| - | ND121400-0840 | FRAME ASS'Y | 1 |
| 8 | ND021501-9560 | FRAME,REAR | 1 |
| 9 | ND021542-0220 | WASHER | 1 |
| 10 | ND021580-5060 | HOLDER | 1 |
| - | ND021620-2201 | BRUSH HOLDER ASS'Y | 1 |
| 14 | ND126000-2310 | REGULATOR ASS'Y | 1 |
| 15 | ND021551-2910 | COVER,REAR | 1 |
| 16 | ND021605-1350 | BUSHING | 4 |
| 17 | ND021605-2490 | BUSHING | 1 |
| 18 | ND949006-5460 | SCREW | 6 |
| 19 | ND91310-04251 | SCREW | 2 |
| 20 | ND949056-2481 | NUT | 8 |
| 21 | ND949056-1001 | NUT | 1 |
| 22 | ND021200-4132 | ROTOR ASS'Y | 1 |
| 25 | ND021041-8680 | PULLEY | 1 |
| 26 | ND949056-2520 | NUT | 1 |
| 27 | ND021751-1990 | CLIP | 1 |
| 28 | ND949007-7000 | SCREW | 1 |
| 29 | ND949047-7870 | BOLT | 1 |
| 30 | ND021700-2680 | WIRE | 1 |
| - | ND121400-0840 | FRAME ASS'Y | 1 |
| 8 | ND021501-9560 | FRAME,REAR | 1 |
| 9 | ND021542-0220 | WASHER | 1 |
| 10 | ND021580-5060 | HOLDER | 1 |
| - | ND021620-2201 | BRUSH HOLDER ASS'Y | 1 |
| 14 | ND126000-2310 | REGULATOR ASS'Y | 1 |
| 15 | ND021551-2910 | COVER,REAR | 1 |
| 16 | ND021605-1350 | BUSHING | 4 |
| 17 | ND021605-2490 | BUSHING | 1 |
| 18 | ND949006-5460 | SCREW | 6 |
| 19 | ND91310-04251 | SCREW | 2 |
| 20 | ND949056-2481 | NUT | 8 |
| 21 | ND949056-1001 | NUT | 1 |
| 22 | ND021200-4132 | ROTOR ASS'Y | 1 |
| 25 | ND021041-8680 | PULLEY | 1 |
| 26 | ND949056-2520 | NUT | 1 |
| 27 | ND021751-1990 | CLIP | 1 |
| 28 | ND949007-7000 | SCREW | 1 |
| 29 | ND949047-7870 | BOLT | 1 |
| 30 | ND021700-2680 | WIRE | 1 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030860 ALTERNATOR (35A)(#26274903-26328689) | 1 | 1 | SN:26274903--26328689 | - |
| 030880 ALTERNATOR (35A)(#26302312-) | - | 1 | SN:26302312--26315327 | - |
| 030940 ALTERNATOR (35A) (INNER PARTS)(#26274903-26328689) | - | 1 | SN:26274903--26328689 | - |
| 030960 ALTERNATOR (35A) (INNER PARTS)(#26302312-26315327) | - | 1 | SN:26302312--26315327 | - |

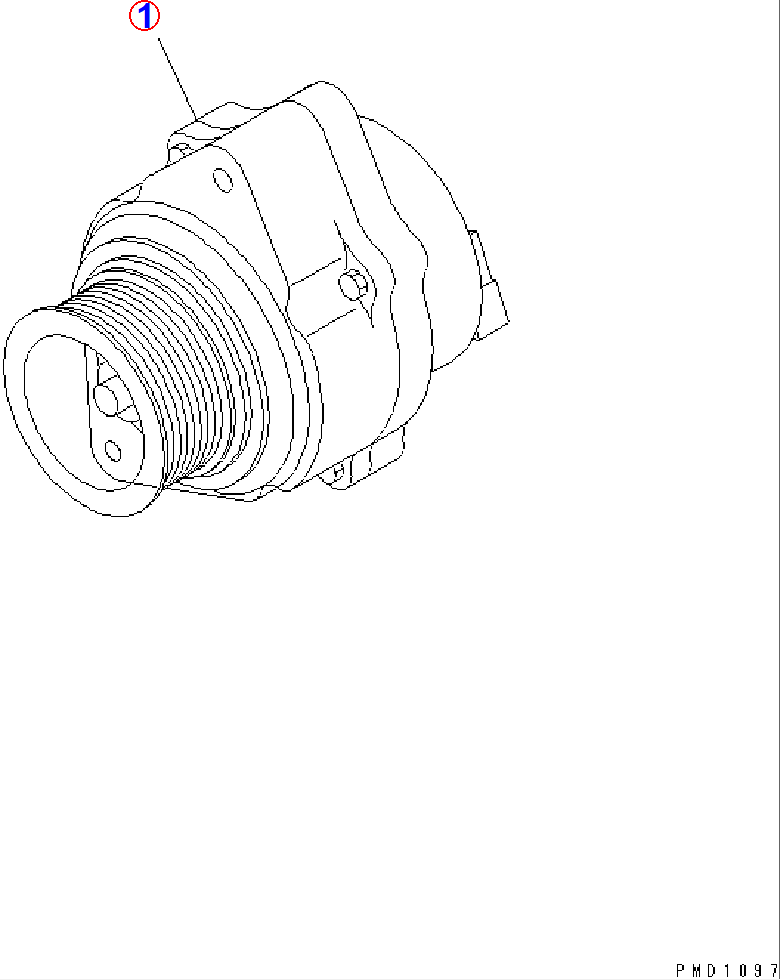

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
600-861-3410 (part ini)
