600-861-3111 — ALTERNATOR A. (35A),(SEE FIG.A601P-02A6)
Sparepart Komatsu · SAA6D102E-2C-8 · ALTERNATOR (35A) (SHIELD ALTERNATOR)(#26277757-) · Halaman 030850
// INFO PART
Halaman / Ref030850
Ref. GambarA601P-01A6
BagianALTERNATOR (35A) (SHIELD ALTERNATOR)(#26277757-)
Part Number600-861-3111
Nama PartALTERNATOR A. (35A),(SEE FIG.A601P-02A6)
MerkKomatsu
Unit / MesinSAA6D102E-2C-8
// TENTANG PART INI
Alternator Komatsu 600-861-3111 ini berfungsi penting untuk menghasilkan daya listrik pada mesin SAA6D102E-2C-8. Temukan spare part Komatsu dan kebutuhan terkait lainnya hanya di spareparttruck.co.id Eropa.
// STRUKTUR ASSEMBLY
Isi assembly 600-861-3111:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| 1 | KD0-35100-0280 | ROTOR ASS'Y | 1 |
| 2 | KD1-33923-0790 | COLLAR | 2 |
| 3 | KD0-09201-0870 | BEARING,BALL | 1 |
| 4 | KD0-35300-0160 | FRONT BRACKET ASS'Y | 1 |
| 10 | KD0-35200-0400 | STATOR ASS'Y | 1 |
| 11 | KD0-0275-06802 | BOLT | 3 |
| 12 | KD0-35411-0640 | PULLEY | 1 |
| 13 | KD0-35421-0140 | FAN | 1 |
| 14 | KD1-0335-16001 | WASHER,SPRING | 1 |
| 15 | KD0-0280-16022 | NUT | 1 |
| 16 | KD0-35120-0450 | FIELD COIL | 1 |
| - | KD0-35700-0701 | REAR BRACKET ASS'Y | 1 |
| 18 | KD0-35730-0510 | RECTIFIER ASS'Y | 1 |
| 24 | KD0-35719-1850 | REGULATOR ASS'Y | 1 |
| 25 | KD0-35761-0200 | COVER | 1 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030850 ALTERNATOR (35A) (SHIELD ALTERNATOR)(#26277757-) | 1 | 1 | SN:26277757-- | - |
| 030930 ALTERNATOR (35A) (SHIELD ALTERNATOR) (INNER PARTS)(#26277757-) | - | 1 | SN:26277757-- | - |

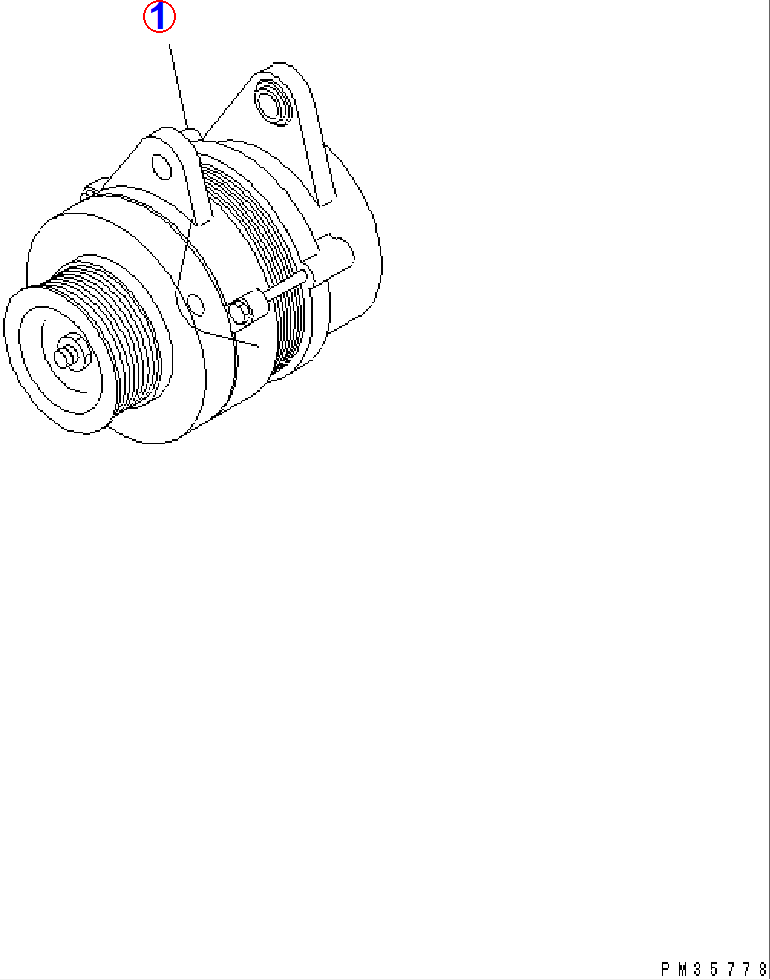

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
600-861-3111 (part ini)
