600-813-6631 — STARTING MOTOR ASS'Y,(7.5KW) (SEE FIG.A6210-B3G1)
Sparepart Komatsu · SAA6D125E-3G-8M · STARTING MOTOR MOUNTING (7.5KW)(#310352-) · Halaman 030770
// INFO PART
Halaman / Ref030770
Ref. GambarA6210-A3G1
KelompokENGINE
BagianSTARTING MOTOR MOUNTING (7.5KW)(#310352-)
Part Number600-813-6631
Ditulis juga6008136631
Nama PartSTARTING MOTOR ASS'Y,(7.5KW) (SEE FIG.A6210-B3G1)
MerkKomatsu
Unit / MesinSAA6D125E-3G-8M
// STRUKTUR ASSEMBLY
Isi assembly 600-813-6631:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| 1 | KD0-23100-0251 | ARMATURE ASS'Y | 1 |
| 2 | KD1-0454-62047 | BEARING,BALL,FRONT | 1 |
| 3 | KD1-0454-62007 | BEARING,BALL,REAR | 1 |
| 4 | KD0-23200-0331 | YOKE ASS'Y | 1 |
| 5 | KD0-23310-0860 | BRACKET,FRONT | 1 |
| 7 | KD7-23120-0310 | SHAFT ASS'Y | 1 |
| 9 | KD1-23181-0020 | STOPPER,PINION | 1 |
| 10 | KD1-23914-0020 | RING,CLIP | 1 |
| 11 | KD1-23500-0170 | CLUTCH ASS'Y,OVER RUNNING | 1 |
| 12 | KD0-23600-0430 | CENTER BRACKET A. | 1 |
| 13 | KD0-23611-0690 | BRACKET,CENTER | 1 |
| 14 | KD1-0240-08405 | BOLT | 3 |
| 15 | KD7-23320-0060 | SHIFT LEVER ASS'Y | 1 |
| 16 | KD0-47100-3944 | MAGNETIC SWITCH A. | 1 |
| 17 | KD7-23700-0520 | REAR BRACKET ASS'Y | 1 |
| 17 | KD0-23700-0130 | REAR BRACKET ASS'Y | 1 |
| 21 | KD0-23901-0170 | BOLT | 2 |
| 22 | KD0-25000-8331 | SWITCH ASS'Y | 1 |
| 23 | KD1-23921-0130 | WASHER | 1 |
| 24 | KD1-23921-0140 | WASHER | 2 |
| 25 | KD1-23941-0040 | WASHER,INSULATE | 1 |
| 26 | KD0-23921-0230 | WASHER | 1 |
| 27 | KD1-47927-0920 | HOLDER | 1 |
| 28 | KD0-0270-06502 | BOLT | 1 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030770 STARTING MOTOR MOUNTING (7.5KW)(#310352-) | 1 | 1 | SN:310352--310961 | nomor lama |
| 030780 STARTING MOTOR (7.5KW) (INNER PARTS)(#310352-310961) | - | 1 | SN:310352--310961 | - |

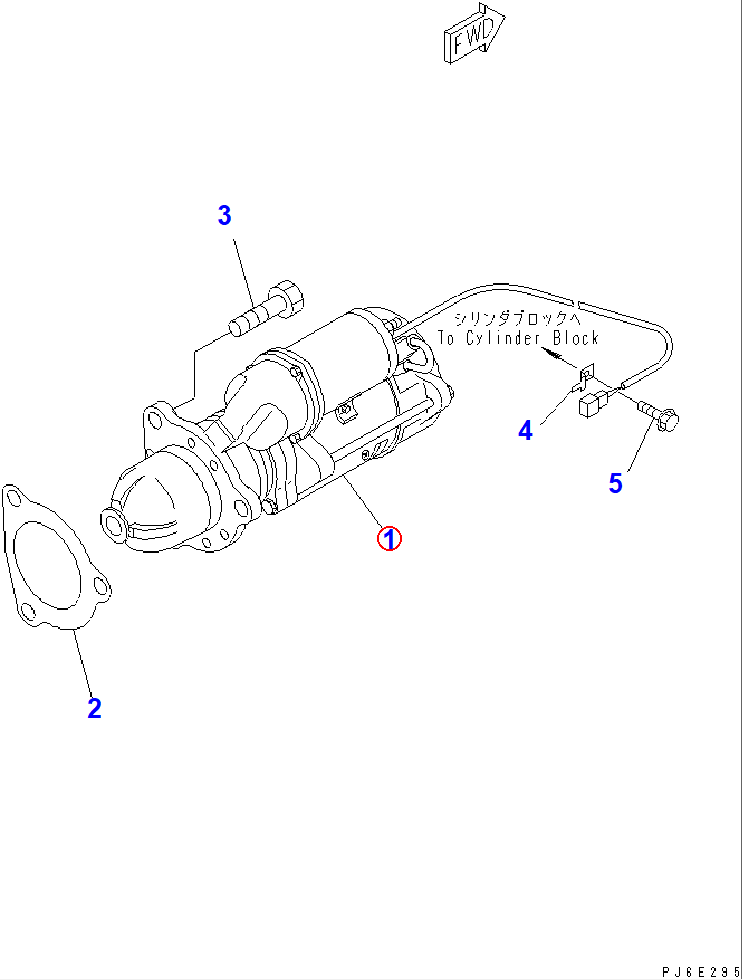

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
600-813-6631 (part ini)
