56D-23-11001 — DIFFERENTIAL ASS'Y,CENTER

Sparepart Komatsu · HM300-1 · CENTER AXLE (CARRIER) · Halaman 150280

// INFO PART

Halaman / Ref150280

Ref. GambarF3450-01A0

KelompokTORQUE CONVERTER AND TRANSMISSION

BagianCENTER AXLE (CARRIER)

Part Number56D-23-11001

Ditulis juga56D2311001

Nama PartDIFFERENTIAL ASS'Y,CENTER

MerkKomatsu

Unit / MesinHM300-1

// TENTANG PART INI

Komatsu Differential Ass'y, Center (56D-23-11001) adalah komponen vital pada poros tengah HM300-1 untuk distribusi daya yang optimal. Temukan sparepart alat berat Komatsu berkualitas lainnya di Sparepart Alat Berat ID. Selengkapnya di sparepartalatberat.co.id.

// STRUKTUR ASSEMBLY

Part ini adalah komponen dari assembly:

56D-23-10002 CENTER AXLE ASS'Y

Isi assembly 56D-23-11001:

Item	Part Number	Nama	Qty
-	56D-23-11102	CARRIER ASS'Y	1
-	56D-23-11101	CARRIER ASS'Y	1
6	567-22-71180	BEARING	2
7	567-22-71140	NUT	2
8	421-22-11150	LOCK	2
9	01010-61435	BOLT	4
10	01643-31445	WASHER	4
11	421-22-11180	BOLT	1
12	01583-12414	NUT	1
13	56D-23-11361	SHIM, 0.15MM	1
-	56D-23-11371	SHIM, 0.2MM	2
-	56D-23-11381	SHIM, 0.3MM	3
-	56D-23-11391	SHIM, 0.8MM	2
14	01010-61450	BOLT	8
15	200-14-11510	WASHER	8
16	56D-23-19610	COVER	1
17	56D-23-19620	PLATE	1
-	56D-22-18101	DIFFERENTIAL ASS'Y	1
-	56D-23-11300	PINION ASS'Y	1
3	01010-61440	BOLT	20
4	01643-31445	WASHER	20
5	421-23-31820	BEARING	1
6	56D-23-16460	BEARING	1
7	56D-23-16900	SPACER,A	1
-	56D-23-16910	SPACER,B	1
-	56D-23-16920	SPACER,C	1
-	56D-23-16930	SPACER,D	1
-	56D-23-16940	SPACER,E	1
-	56D-23-16950	SPACER,F	1
-	56D-23-16960	SPACER,G	1
-	56D-23-16970	SPACER,H	1
-	56D-23-16980	SPACER,I	1
-	56D-23-16990	SPACER,J	1
8	56D-23-11351	CAGE	1
9	07000-15175	O-RING	1
10	56D-23-16622	GEAR	1
11	56D-23-16592	COVER	1
12	01010-61230	BOLT	5
13	01643-51232	WASHER	5
14	04000-00715	KEY	1
15	56B-23-16840	HOLDER	1
16	56B-23-16710	SHIM, 0.15MM	3
-	56B-23-16720	SHIM, 0.2MM	2
-	56B-23-16730	SHIM, 0.5MM	3
-	56B-23-16741	SHIM, 0.18MM	2
-	56B-23-16740 (lama)	SHIM, 0.18MM	2
17	56B-23-16860	HOLDER	1
18	01051-62420	BOLT	1
19	56D-23-16870	COVER	1
20	01010-61290	BOLT	6
21	01643-51232	WASHER	6
22	07042-70108	PLUG	1
1	56D-23-16442	COUPLING	1
2	423-22-21240	WASHER	1
3	01011-62020	BOLT	1
4	07000-15055	O-RING	1
5	07012-50095	SEAL,OIL	1
6	56B-23-11760	SEAL,SIDE	1
7	56D-23-16652	CAGE	1
8	01010-61445	BOLT	8
9	200-14-11510	WASHER	8
10	07000-15165	O-RING	1
11	706-77-42890	BEARING	2
12	56D-23-16510	SHIM, 0.15MM	1
-	56D-23-16521	SHIM, 0.18MM	2
-	56D-23-16520 (lama)	SHIM, 0.18MM	2
-	56D-23-16530	SHIM, 0.2MM	2
-	56D-23-16540	SHIM, 0.3MM	3
-	56D-23-16550	SHIM, 0.8MM	2
13	56D-23-16642	SHAFT	1
14	56D-23-16612	GEAR,DRIVE	1
15	56D-23-16830	SPACER	2
16	56D-23-16631	CASE	1
17	07043-70211	PLUG	1
18	07042-00415	PLUG	1
19	01010-61235	BOLT	18
20	01643-51232	WASHER	18
21	07040-11409	PLUG	3
22	07002-11423	O-RING	3
23	07044-12412	PLUG	2
24	07002-12434	O-RING	2
25	04020-01228	PIN,DOWEL	2
26	56D-23-16660	COUPLING	1
27	04065-04718	RING,SNAP	1
28	56D-23-16421	COUPLING	1
29	714-07-14120	DEFLECTOR	1
30	423-22-21240	WASHER	1
31	01011-62020	BOLT	1
32	07000-15050	O-RING	1
33	07012-50090	SEAL	1
34	56B-22-11760	SEAL,SIDE	1
35	06340-06312	BEARING	1
36	56D-23-16670	SHAFT,OUTPUT	1
37	56D-23-16691	COVER	1
38	56D-23-16681	CAGE	1
39	07000-15160	O-RING	2
40	01010-61250	BOLT	6
41	01643-51232	WASHER	6
42	01010-61230	BOLT	2
43	01643-51232	WASHER	2

// PEMAKAIAN DI KATALOG

Halaman	Item	Qty	S/N	Ket.
150280 CENTER AXLE (CARRIER)	-	1	SN:1001--	subkomponen
150290 CENTER AXLE (DIFFERENTIAL LOCK)	-	3	SN:1001--	subkomponen
150300 CENTER AXLE (PINION AND CAGE)	-	1	SN:1001--	-
150310 CENTER AXLE (TRANSFER)	-	1	SN:1001--	subkomponen

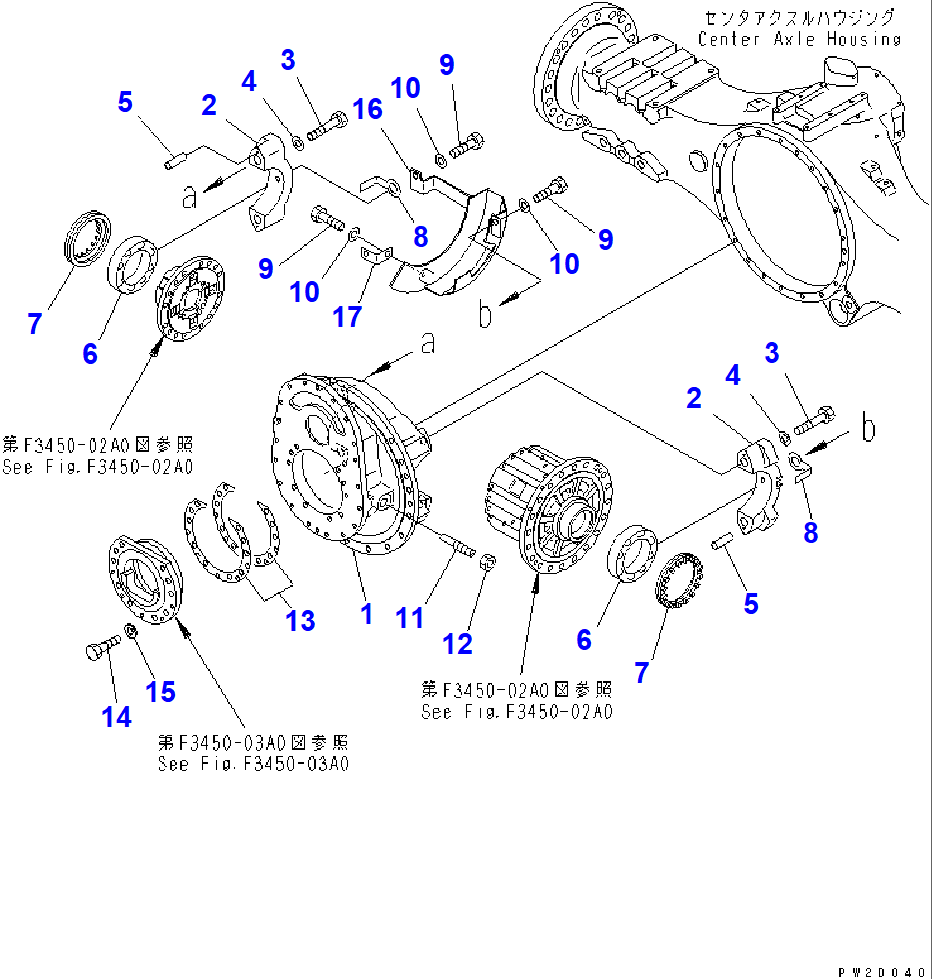

// DIAGRAM LENGKAP

// KODE / INTERCHANGE

56D-23-11001 (part ini)
