56D-15-12010 — CLUTCH ASS'Y,INPUT
Sparepart Komatsu · HM300-1 · TRANSMISSION (FORWARD LOW AND REVERSE) · Halaman 150060
// INFO PART
Halaman / Ref150060

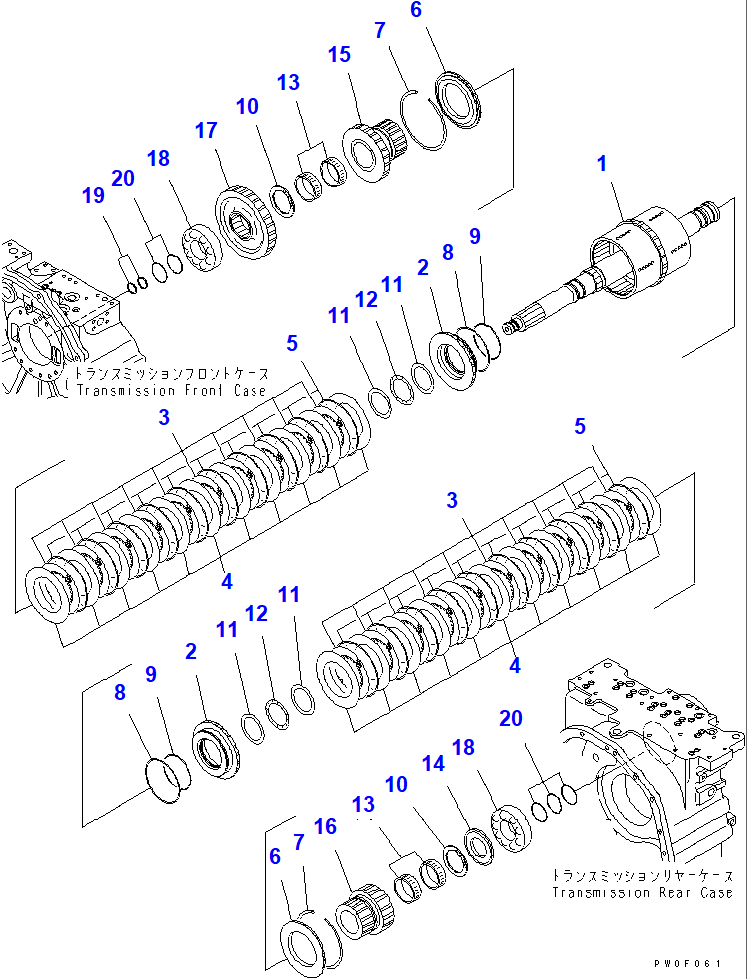

Ref. GambarF3300-53A0
KelompokTORQUE CONVERTER AND TRANSMISSION
BagianTRANSMISSION (FORWARD LOW AND REVERSE)
Part Number56D-15-12010
Ditulis juga56D1512010
Nama PartCLUTCH ASS'Y,INPUT
MerkKomatsu
Unit / MesinHM300-1
// TENTANG PART INI
CLUTCH ASS'Y,INPUT (56D-15-12010) adalah komponen vital transmisi Komatsu HM300-1 untuk perpindahan daya yang efisien. Temukan spare part Komatsu ini serta suku cadang alat berat lainnya hanya di suku-cadang.com.
// STRUKTUR ASSEMBLY
Part ini adalah komponen dari assembly:
- 56D-13-10000 TORQFLOW ASS'Y
Isi assembly 56D-15-12010:
| Item | Part Number | Nama | Qty |
|---|---|---|---|
| 1 | 56D-15-12110 | SHAFT AND CYLINDER A,INPUT | 1 |
| 2 | 56D-15-12650 | PISTON | 2 |
| 3 | 714-12-19711 | DISC | 20 |
| 4 | 714-16-19730 | PLATE,SEPARATE | 22 |
| 5 | 56D-15-12710 | SPRING,WAVE | 20 |
| - | 419-15-12133 | SPRING,WAVE | 20 |
| 6 | 714-12-12610 | PLATE,END | 2 |
| 7 | 419-15-12140 | RING,SNAP | 2 |
| 8 | 714-13-19210 | RING,SEAL (K1) | 2 |
| 9 | 714-08-19210 | RING,SEAL (K1) | 2 |
| 10 | 714-08-19570 | WASHER,THRUST | 2 |
| 11 | 419-15-12680 | WASHER | 4 |
| 12 | 419-15-12670 | BEARING | 2 |
| 13 | 714-23-19431 | BEARING,NEEDLE | 4 |
| - | 714-23-19430 | BEARING,NEEDLE | 4 |
| 14 | 714-19-12720 | SPACER | 1 |
| 15 | 56D-15-12411 | GEAR,FOWARD LOW | 1 |
| - | 56D-15-12410 | GEAR,FOWARD LOW | 1 |
| 16 | 56D-15-12421 | GEAR,REVERSE | 1 |
| 17 | 56D-15-12530 | GEAR,INPUT | 1 |
| 18 | 714-12-19340 | BEARING | 2 |
| - | 06043-00312 | BEARING | 2 |
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 150060 TRANSMISSION (FORWARD LOW AND REVERSE) | - | 1 | SN:1001--(100023) | subkomponen |
// KODE / INTERCHANGE
56D-15-12010 (part ini)
