KAMUS-SPAREPART
PARTS CATALOG REFERENCE
08193-20010 — CLIP
Sparepart Komatsu · SAA6D102E-2C-8, SAA6D125E-3G-8M · WATER TEMPERATURE SENSOR(#26282903-) · Halaman 030030
// INFO PART
Halaman / Ref030030
Ref. GambarA101V-01A1
BagianWATER TEMPERATURE SENSOR(#26282903-)
Part Number08193-20010
Ditulis juga0819320010
Nama PartCLIP
MerkKomatsu
Unit / MesinSAA6D102E-2C-8, SAA6D125E-3G-8M
// TENTANG PART INI
Klip Komatsu 08193-20010 ini berfungsi mengamankan sensor suhu air pada mesin SAA6D102E-2C-8. Temukan klip ini dan suku cadang Komatsu terkait lainnya di spareparttruck.co.id Eropa.
// PEMAKAIAN DI KATALOG
| Halaman | Item | Qty | S/N | Ket. |
|---|---|---|---|---|
| 030030 SAA6D102E-2C-8 · WATER TEMPERATURE SENSOR(#26282903-) | 4 | 1 | SN:26282903-- | - |
| 030360 SAA6D102E-2C-8 · FLUID LEVEL SENSOR(#26282903-) | 3 | 1 | SN:26282903-- | - |
| 030770 SAA6D125E-3G-8M · STARTING MOTOR MOUNTING (7.5KW)(#310352-) | 4 | 1 | SN:310352-- | - |
| 030790 SAA6D125E-3G-8M · WIRING (1/3) POWER LINE(#310352-) | 20 | 2 | SN:310352-- | - |
| 030800 SAA6D125E-3G-8M · WIRING (2/3) RIGHT SIDE ENGINE (SENSOR AND SWITCH)(#310352-) | 25 | 2 | SN:310352-- | - |
| 030810 SAA6D125E-3G-8M · WIRING (3/3) LEFT SIDE ENGINE (SENSOR AND SWITCH)(#310352-) | 17 | 1 | SN:310352-- | - |
| 030810 SAA6D125E-3G-8M · WIRING (3/3) LEFT SIDE ENGINE (SENSOR AND SWITCH)(#310352-) | 21 | 1 | SN:310352-- | - |

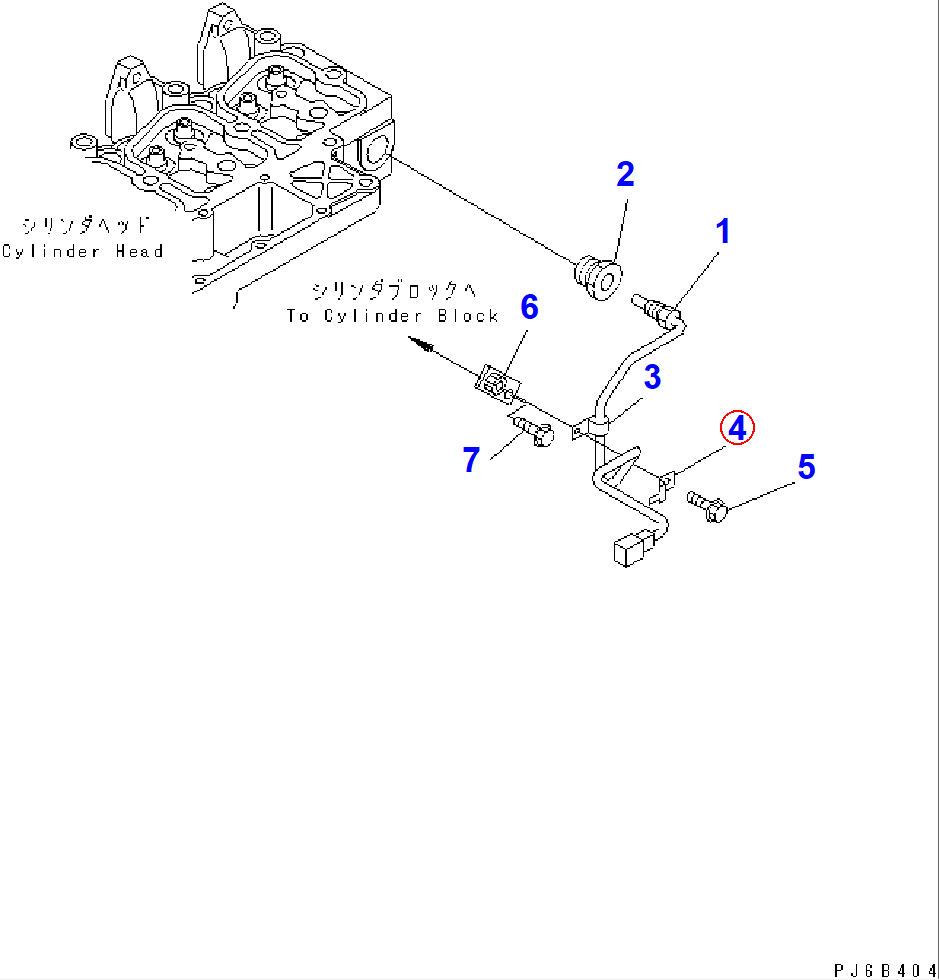

// DIAGRAM LENGKAP
// KODE / INTERCHANGE
08193-20010 (part ini)
